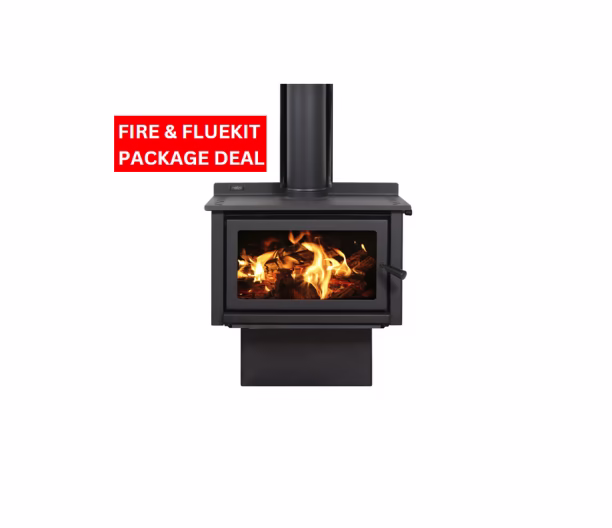

Ultra Xtreme Rad Wood Fire
Ultra Low Emission Burners (ULEB’s) have Environment Canterbury (ECan) and NES approval and can be installed throughout New Zealand including homes in the Canterbury and Nelson regions.
Delivering real warmth to your home with a generous flame view to enjoy on those cold winter nights. Firebox construction of solid 6mm steel and firebrick lined for maximum radiant heat. The Ultra Xtreme Rad is fitted with a convection fan which distributes a gentle air flow around the inner cabinet of your fire enhancing the transfer of heat into the room to maximise efficiency.
Type:Ultra low emission
Peak Output:18kW
Heating Area:Up to 200m2 / 4 bedroom home
Finish:Metallic black
MfE #:200998 (NES) / 200997 (ECan CM1)
Emissions:0.39gms (NES) / 27.7mg/MJ (ECan CM1)
Efficiency:67.4% (NES)
Airtube:Ultra Xtreme Air Tube
Baffle:Ultra Xtreme Baffle
Door glass:Xtreme Series/Mega Smart Door Glass
Door retainer:Xtreme Series/Mega Smart Glass Retainer
Fire bricks:Metro Firebrick (3)
Minimum installation clearances with a Pioneer double flue shield fitted (mm):
A | B | C | D | E | F | G | H |
---|---|---|---|---|---|---|---|
277 | 635 | 632 | 450 | 100 | 227 | 280 | 100 |
I | J | K | L | M | N | O | |
909 | 907 | 1267 | 1075 | 507 | – | – |
Dimensions | Width | Depth | Height |
---|---|---|---|
(mm) | 710 | 582 | 722 |
