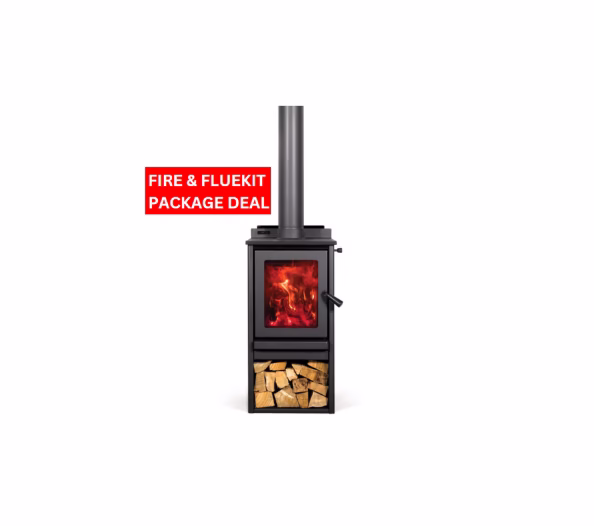

Rad One Wood Fire
The Metro Rad One features the innovative black glass-ceramic ROBAX® NightView from SCHOTT.
Contrasting nicely against the metallic black paint finish, the upright vertical design with minimalist detailing, brings a clean and refined aesthetic with a magnificent flame view. The perfect solution for tiny homes and smaller dwellings. Due to it’s small firebox size and footprint, the Rad One is installed with the ECO 130 Flue Kit (130mm diameter flue) and the Pioneer 900 double flue shield.
The Metro Rad One features the innovative black glass-ceramic ROBAX® NightView from SCHOTT.
Contrasting nicely against the metallic black paint finish, the upright vertical design with minimalist detailing, brings a clean and refined aesthetic with a magnificent flame view. The perfect solution for tiny homes and smaller dwellings. Due to it’s small firebox size and footprint, the Rad One is installed with the ECO 130 Flue Kit (130mm diameter flue) and the Pioneer 900 double flue shield.
Minimum installation clearances with a Pioneer 900 double flue shield fitted (mm):
A | B | C | D | E | F | G | H |
---|---|---|---|---|---|---|---|
265 | 532 | 585 | 335 | 93 | 245 | 320 | 100 |
I | J | K | L | M | N | O | |
850 | 680 | 1060 | 850 | 280 | – | – |
Dimensions | Width | Depth | Height |
---|---|---|---|
(mm) | 423 | 503 | 880 |
